Notice: Function _load_textdomain_just_in_time was called incorrectly. Translation loading for the jetpack domain was triggered too early. This is usually an indicator for some code in the plugin or theme running too early. Translations should be loaded at the init action or later. Please see Debugging in WordPress for more information. (This message was added in version 6.7.0.) in /home/sha/public_html/wp-includes/functions.php on line 6131 CASE STUDY – 13501- Prince of Wales Hospital – Specialist Height Access

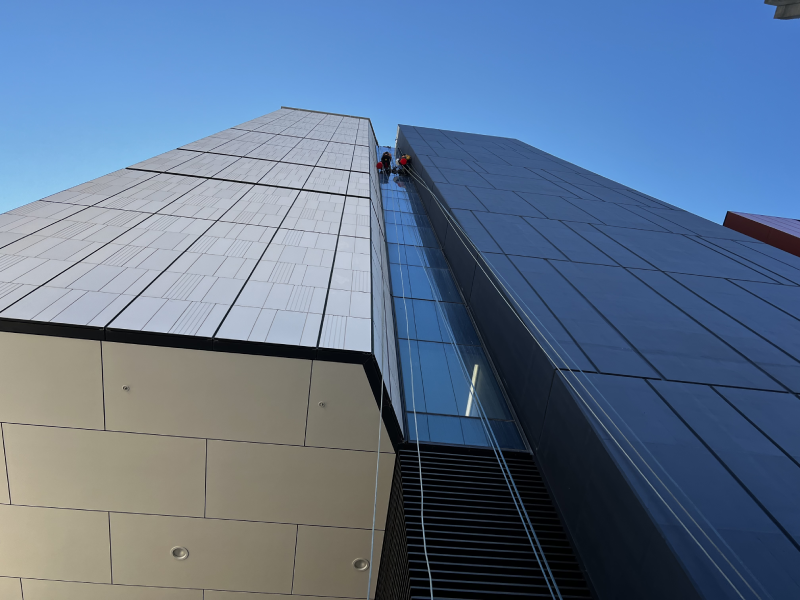

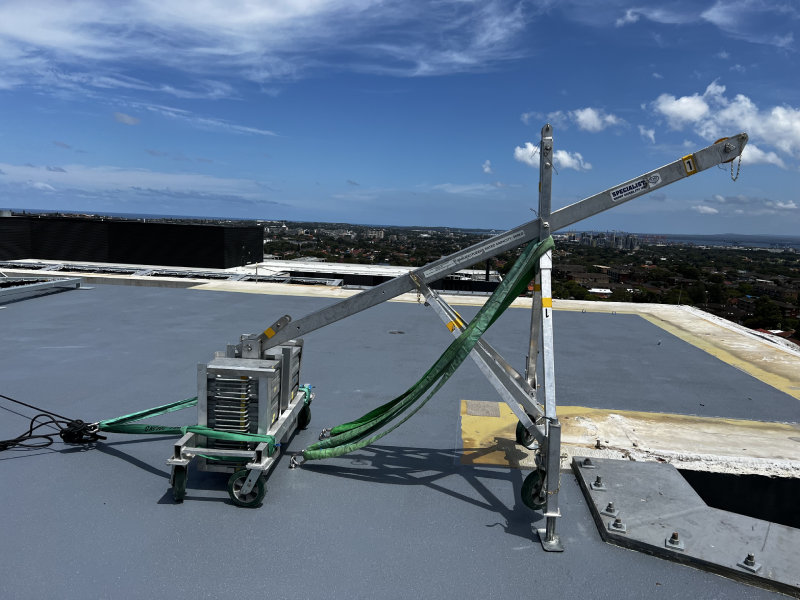

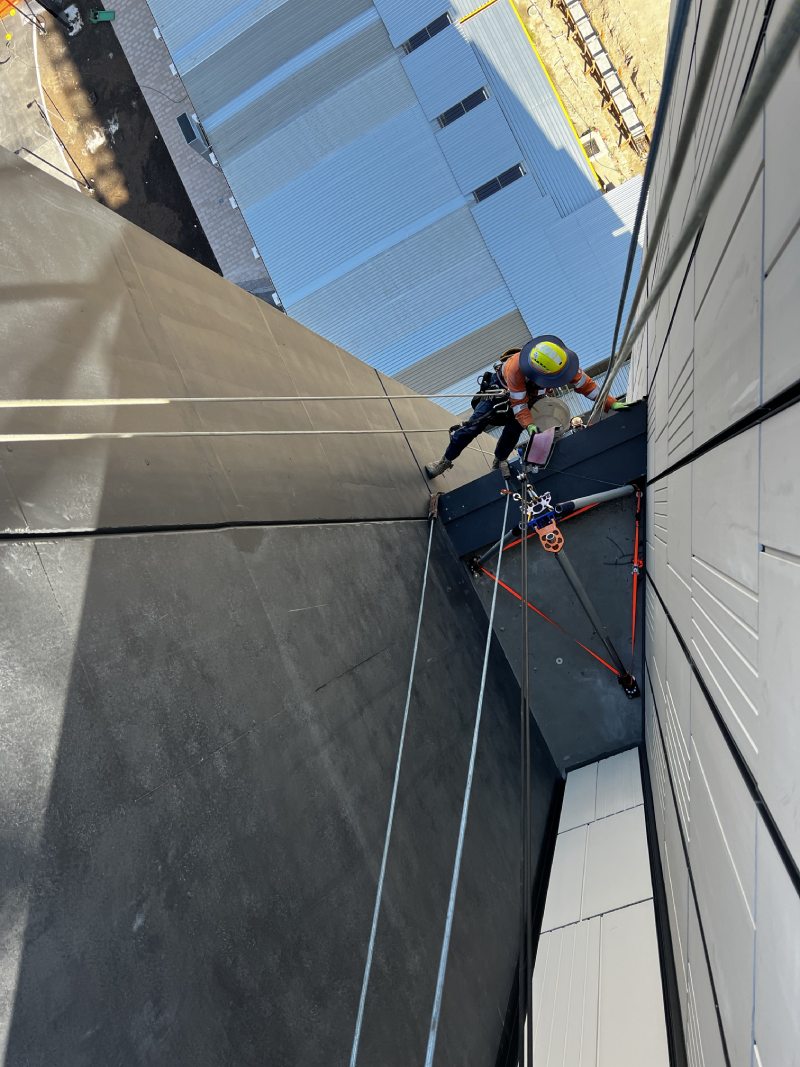

Due to the very small footprint SHA were called into to complete a deglaze 1 of a 180kg vision panel (Level 6/7 Western Elevation) to allow the installation of an Alimac. Accessing via the helipad we used Counterweight rigs tied down via 2 x Ferrule Anchors for back up. A Vortex multipod was set up on the lower roof to create a high point / deviation to avoid a sharp edge for our ropes

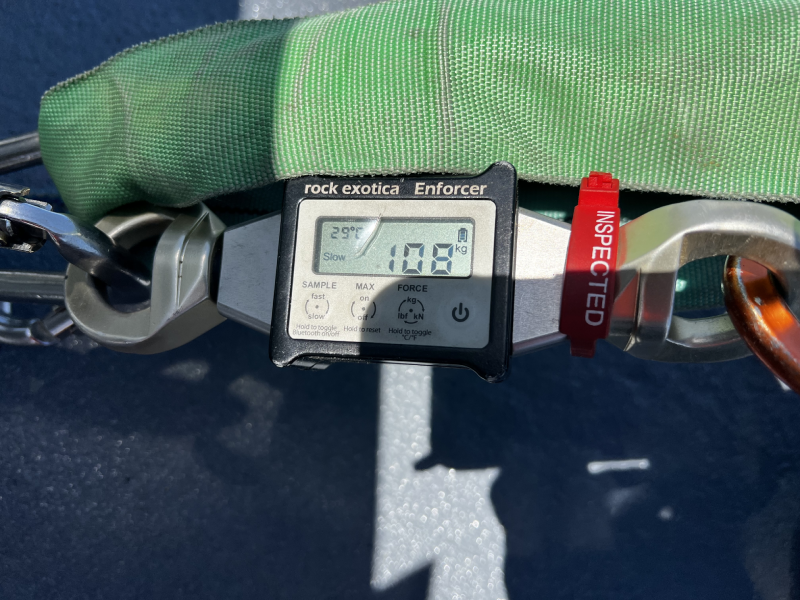

A 2:1 Mechanical Advantage (MA) System was set up on the glass sucker unit to lesser the load on the pull force from the winch. We therefore reduced the total Weight from 260kg to 108K. Using up to 800 metres of rope was required for our technicians and tensions lines, we cut out all sealant and lowered the vision panel safely to the ground.
CLIENT: Onsite Group / Lend Lease LOCATION: Prince of Wales Hospital DATE: 2023 PREPARATION TIME: 3 Days PROJECT DURATION: 1 Day QTY OF ROPE USED: 800mtr
SCOPE:
Replace a vision panel (180kg)
SERVICES PROVIDED:
Glazing
Rigging & Heavy Lifting
INDUSTRY:
Building Maintenance
ROPE MANOEUVRES:
Deviations
Hauling Systems
Lowering Systems
